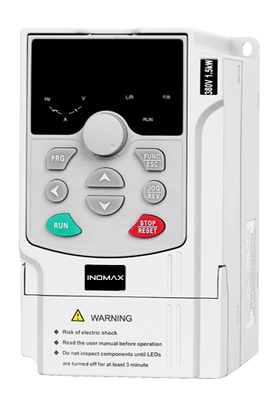

INOMAX MAX500 VFD AC Drive 1.5KW 380V-480V 3-Phase Tension Control

Name: INOMAX MAX500 VFD AC Drive 1.5KW 380V-480V 3-Phase Tension Control
Brand: Shenzhen Inomax Technology Co., Ltd.
SKU: MAX500
Price: 99 USD
Availability: InStock

Brand Name:	INOMAX
Model Number:	MAX500
MOQ:	1
Price:	$99

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Type:

AC DRIVE

Control Mode:

TENSION

Rated Power:

1.5KW

Nominal Voltage:

380V-480V

Power Phase:

Power Range:

0.75KW -630KW

Motor Type:

Three Phase AC Induction

Insulation Voltage:

800V/1600V

Switching Interval:

10 - 30 Microseconds

Flux Control:

Hysteresis Control

Torque Control:

Direct Torque Control

Current Measurement:

High Quality, No Noise

Stator Voltage:

Estimated From DC Circuit

Speed Sensitivity:

Low Speed Sensitive

Voltage Class:

200V/400V

Highlight:

INOMAX MAX500 VFD drive 1.5KW

3-phase VFD drive 380V-480V

VFD drive with tension control

Product Description

INOMAX MAX500 VFD AC DRIVE 0.75KW -630KW 380V-480V Inverter for General Purposes

Product Specifications

Attribute	Value
Type	AC DRIVE
Control Mode	TENSION
Rated Power	1.5KW
Nominal Voltage	380V-480V
Power Phase Number	3
Customized	Yes
Warranty	18 MONTHS

Product Overview

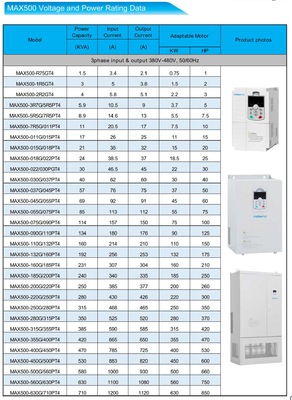

Technical Specifications

Application Areas

Frequently Asked Questions

What is direct torque control?

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

What is the benefit of direct torque control?

Torque and flux can be changed very fast by changing the references
High efficiency & low losses - switching losses are minimized because the transistors are switched only when needed
The step response has no overshoot
No dynamic coordinate transforms are needed, all calculations are done in stationary coordinate system
No separate modulator is needed, the hysteresis control defines the switch control signals directly
There are no PI current controllers, thus no tuning of the control is required
The switching frequency of the transistors is not constant but can be controlled via tolerance bands
Due to the hysteresis control the switching process is random by nature, resulting in low audible noise
The intermediate DC circuit's voltage variation is automatically accounted for in the algorithm
Synchronization to rotating machine is straightforward due to the fast control

What Type Of Motor Is Compatible With Inverters?

Inverter motor type must be a three phase AC induction motor. Preferably, you should use an inverter-grade motor that has 800V insulation for 200V class inverters, or 1600V insulation for 400V class inverters. For motor size, in practice it is much better to find the right size motor for your application; then look for an inverter to match the motor.

What Are Some Of The Common Reasons Why Motors Fail?

The EPRI Power Industry Study by General Electric in 1985 offered the following causes based on 6,000 utility motor failures: 41% were bearing related, 37% were stator related, 10% were rotor related and 12% were other causes.

How do you select a VFD?
