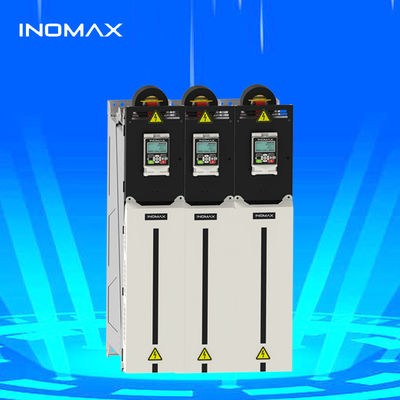

Fast Delivery Variable Frequency Drive for Low Voltage PMSM Motor with 18 Months Warranty

Brand Name:	Inomax
Model Number:	ACS880-B23-05A6-3B
MOQ:	1
Price:	$500

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Control Mode:

Slip Compensation Control, V/F Control, Sensorless Vector Control, Direct Torque Control, Pid Control, Vector Control

Nominal Voltage:

220 V, 380v, 690, 1140

Power Phase:

Rated Power:

1.5kw-5000kw

Dimensions:

167.5*185.8*80mm

Power Range:

0.75KW-5000KW

Voltage Range:

220v,230v,240v,380v,400v,440v,480v,500v,520v,600v,660v,690v

Protocol Type:

Modbus,CanOpen,Profibus, Profinet,Ethercat,Ethernet

Torque Response:

Less Than 5 Ms

Torque Repeatability:

Speed Accuracy:

Less Than 0.5%

Speed Resolution:

0.01Hz

Output Frequency:

0~1000Hz

Input THDi:

<5%

Harmonics:

Less Than 3%

Highlight:

Fast Delivery Variable Frequency Drive

Low Voltage PMSM Motor VFD

18 Months Warranty Frequency Inverter

Product Description

Fast Delivery AC VFD for Low Voltage PMSM Motor

Product Description

ACS 880 high performance DTC drive for industrial applications

Model reference	ACS880 abb analog
Product type	High performance DTC drive
Applications	Complex, Heavy duty, Speed control, Tension control, Position control, Lifting control, DTC, STO, Direction torque control, Safe Torque Off
Power range	0.75KW-5000KW
Voltage	220v, 230v, 240v, 380v, 400v, 440v, 480v, 500v, 520v, 600v, 660v, 690v
Control mode	DTC control, Vector control
Protocols	Modbus, CanOpen, Profibus, Profinet, Ethercat, Ethernet
Warranty	24 months

ACS880 Advantages

Direct torque control technology (same as ABB)
Compatible with any sine wave AC motor including IM/PM/SynRM/Servo motors
Four-quadrant inverter with energy feedback for energy savings and reduced harmonics

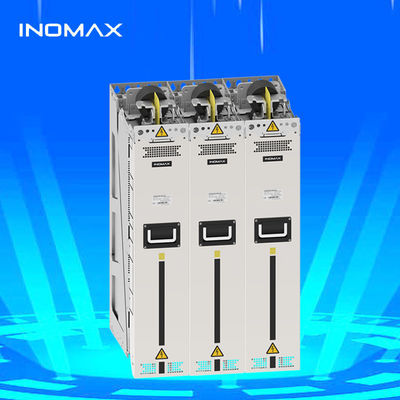

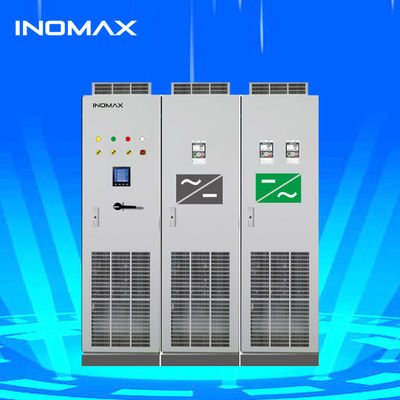

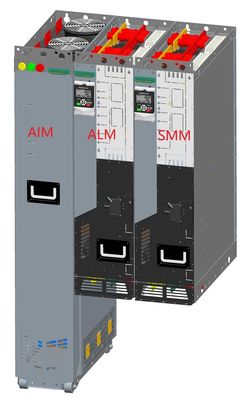

Supports stack type inverter or multi-drive modules type inverter
380V-690V range from 0.75KW-5000KW
Built-in standard EMC filters, DC reactor and braking units
Supports multiple communication protocols: Budbus, Profibus, ProfiNET, EtherCAT, Ethernet
2x torque in zero speed without sensor control, smooth switch between driver and brake
Torque response time <5ms for sensorless applications (0 step to rated torque)
Speed loop dynamic response accuracy: 0.7%
Speed accuracy of sensorless applications <0.5% (sensor not needed in 95% of applications)
Advanced weak magnetic control technology minimizes motor losses
Intelligent temperature-controlled fan increases drive lifespan
Special logic programming function reduces PLC costs
Built-in multiple application parameter macros for user-friendly operation

Application Experience

Metallurgy Project - Henan Yaxin Iron and Steel Plant

The converter steelmaking process requires precise control systems for quality molten steel production. Our solution used master/slave control for 4 rigidly connected 90KW motors, achieving absolute synchronization and eliminating "nodding" and "shaking" problems.

20-Roll Reversible Mill Project

Our regenerative drive application included 4 motors (1900kW main winding, 2x2000kW winding, 250kW unwinding) with 690VAC input. The system achieved tension control accuracy <1% with maximum rolling line speed of 600m/min.

Mine Hoist Experience

Our drives were selected by SIEMAG TECBERG group for shaft hoisting systems requiring low harmonics and high torque at low frequency, maintaining safety in critical low-speed operations.

Motor Test Bench Project

Our system with 2 motors (MUT and DM) provides comprehensive testing capabilities including durability, temperature rise, overload performance, field weakening, and real-time data display.

Xiangyanghong Scientific Research Ship

Our drive system was selected for this high-end marine winch application requiring harmonics <3% to protect sensitive electronic equipment, demonstrating superior torque coordination and low EMI characteristics.

Oil Field Applications

Our VFD solutions for top drive and drilling pump systems deliver reliable performance in demanding oil field operations.

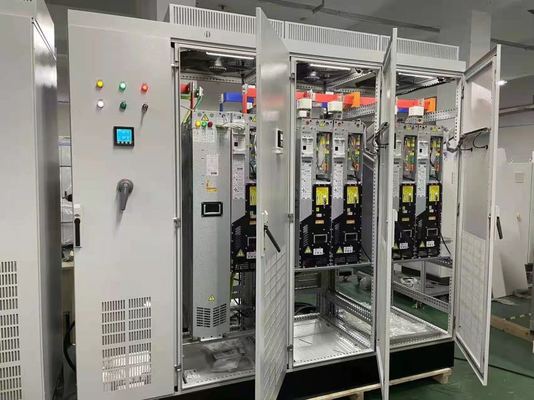

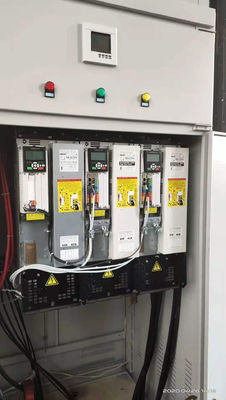

Production & Packaging

FAQ

What is direct torque control?

Direct torque control (DTC) is an advanced motor control method that provides fast torque response without needing complex coordinate transformations.

What is the benefit of direct torque control?

Fast torque and flux response by changing references
High efficiency with minimized switching losses
No overshoot in step response
No dynamic coordinate transforms needed
No separate modulator required
No PI current controllers or tuning needed
Random switching process reduces audible noise
Automatically compensates for DC voltage variations

What type of motor is compatible with inverters?

Three phase AC induction motors are compatible, preferably inverter-grade motors with appropriate voltage insulation (800V for 200V class, 1600V for 400V class).

What are common reasons for motor failure?

According to studies: 41% bearing related, 37% stator related, 10% rotor related, and 12% other causes.

How do you select a VFD?

Consider motor size and application requirements first, then match the VFD specifications accordingly.
