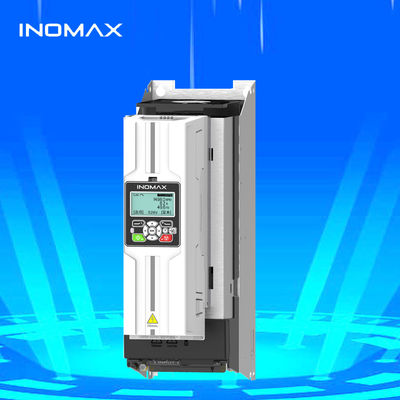

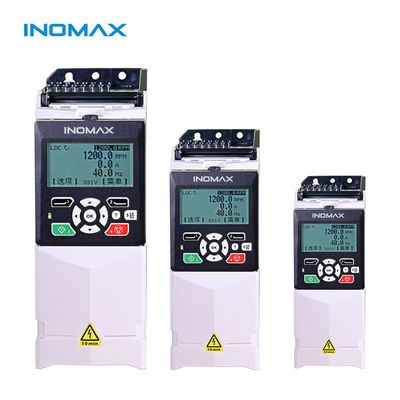

185KW-315KW Variable Frequency Drive for Low Voltage Synchronous Motor with 220V-1140V 3 Phase Power

Brand Name:	Inomax
Model Number:	ACS880-B23-05A6-3B
MOQ:	1
Price:	$500

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Control Mode:

Slip Compensation Control, V/F Control, Sensorless Vector Control, Direct Torque Control, Pid Control, Vector Control

Nominal Voltage:

220 V, 380v, 690, 1140

Power Phase:

Rated Power:

1.5kw-5000kw

Dimensions:

167.5*185.8*80mm

Power Range:

0.75KW-5000KW

Voltage Range:

220v,230v,240v,380v,400v,440v,480v,500v,520v,600v,660v,690v

Protocol Type:

Modbus,CanOpen,Profibus, Profinet,Ethercat,Ethernet

Torque Response:

Less Than 5 Ms

Torque Repeatability:

Speed Accuracy:

Less Than 0.5%

Speed Response:

0.7% S

Frequency Range:

0~1000Hz

Frequency Resolution:

0.01Hz

Input THDi:

<5%

Highlight:

185KW-315KW Variable Frequency Drive

220V-1140V VFD

3 Phase Frequency Inverter

Product Description

185KW-315KW Variable Frequency Drive for Low Voltage Synchronous Motor

ACS 880 high-performance DTC drive for complex industrial applications including speed control, tension control, position control, and lifting control.

Model Reference	ACS880 abb analog
Product Type	High performance DTC drive
Applications	Complex, Heavy duty, Speed control, Tension control, Position control, Lifting control, DTC, STO, Direction torque control, Safe Torque Off
Power Range	0.75KW-5000KW
Voltage	220V, 230V, 240V, 380V, 400V, 440V, 480V, 500V, 520V, 600V, 660V, 690V
Control Mode	DTC control, Vector control
Protocols	Modbus, CanOpen, Profibus, Profinet, Ethercat, Ethernet
Warranty	24 months

ACS880 DTC Drive Advantages

Direct torque control technology equivalent to ABB
Compatible with any sine wave AC motor including IM/PM/SynRM/Servo motors
Four-quadrant inverter with energy feedback for energy savings and reduced harmonics

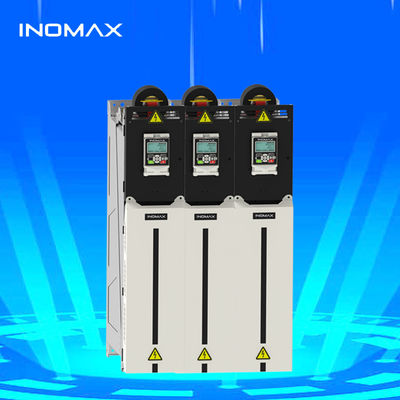

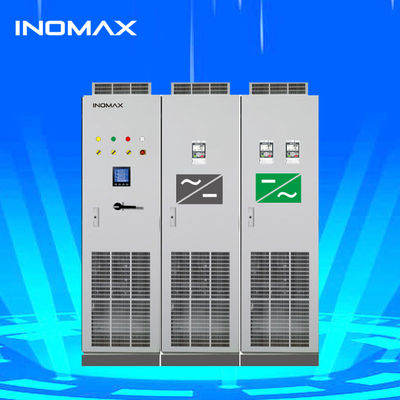

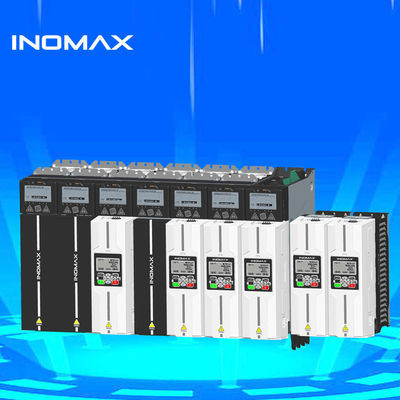

Supports stack type inverter or multi-drive modules type inverter
380V-690V range from 0.75KW-5000KW
Built-in standard EMC filters, DC reactor and braking units
Supports multiple communication protocols: Budbus, Profibus, ProfiNET, EtherCAT, Ethernet
2x torque in zero speed without sensor control
Torque response time <5ms for sensorless applications

Speed loop dynamic response accuracy: 0.7%
Sensorless speed accuracy <0.5% (no sensor needed in 95% of applications)
Advanced weak magnetic control technology minimizes motor losses
Intelligent temperature-controlled fan extends drive lifespan
Built-in logic programming function reduces PLC requirements
Multiple application parameter macros for easy commissioning

ACS 880 with direct torque control and energy saving functions features four-quadrant energy regeneration and feedback, with built-in filters and reactors. Ideal for steel, cement, chemical, oil & gas, power, and mining applications.

Application Project Experience

Metallurgy Project: Henan Yaxin Iron and Steel Plant

The converter steelmaking process requires precise control systems for quality molten steel production. Our solution used 4 sets of 90KW variable frequency motors with master/slave control for absolute synchronization, eliminating "nodding" and "shaking" problems.

Rolling Mill Application

20-roll reversible mill project featuring regenerative drive technology with 4 motors (1900kW main winding, 2x2000kW winding, and 250kW unwinding). Our design used 5 AFE +16 SMM inverters with tension control accuracy <1%.

Mine Hoist System

Developed for SIEMAG TECBERG group to meet strict requirements for low harmonics and high torque at low frequency, ensuring safety in shaft hoisting operations.

Motor Test Bench Project

System features two motors (MUT and DM) with controller managing speed and torque. Capabilities include durability testing, temperature rise analysis, field weakening performance, and real-time efficiency monitoring.

Key Advantages for Motor Test Bench:

Significant energy savings through grid feedback
Bidirectional loading characteristics
Wide speed adaptation range
High torque response speed (ms level)
Anti-drag capability for multiple applications

National Key Project: Xiangyanghong Scientific Research Ship

High-end marine long-line winch drive system with harmonics <3%, meeting strict electromagnetic interference requirements for precision electronic equipment.

Oil Field Applications

Specialized VFD solutions for top drive systems and drilling pump systems in oil field operations.

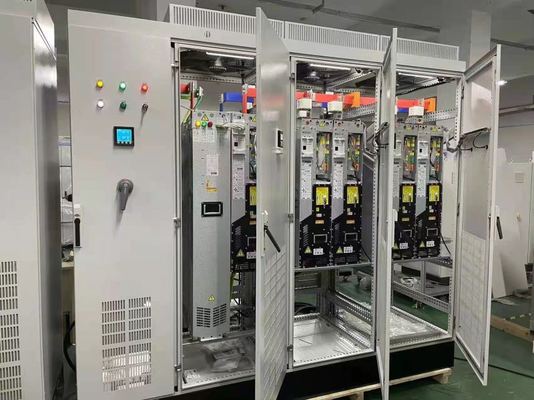

Production & Packaging

Frequently Asked Questions

What is direct torque control?

Direct torque control (DTC) is an advanced motor control method that provides fast torque response without needing complex coordinate transformations.

What are the benefits of direct torque control?

Fast torque and flux response
High efficiency with minimized switching losses
No overshoot in step response
Simplified control without PI current controllers
Automatic compensation for DC voltage variations
Low audible noise due to random switching

What type of motor is compatible with inverters?

Three phase AC induction motors are compatible, preferably inverter-grade motors with proper voltage class insulation (800V for 200V class, 1600V for 400V class).

How do you select a VFD?

Consider motor size, application requirements, control features needed, and environmental conditions. Match the VFD specifications to your motor's requirements.
